Removal And Installation: Radiator: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING .

-- Remove the fan shroud together with the radiator fan, refer to FAN SHROUD WITH COOLANT FAN .

-- Release the retaining clamp -arrow-.

Fig 1: Identifying Upper Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper radiator coolant hose -1-.

-- Disconnect the coolant hose clamp -3-.

Fig 2: Identifying Engine Coolant Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant hose from the radiator.

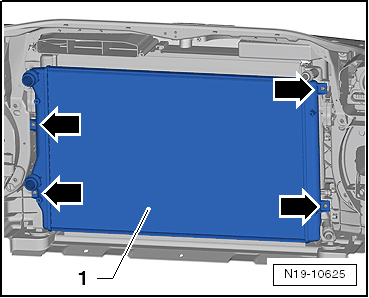

-- Remove the radiator bolts -arrows- and then remove the radiator downward.

Fig 3: Locating Radiator Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
