Charge Air Cooling Pump -V188-: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation, refer to Overview - Herbie Beetle Decorative Film .

-- Disconnect the connector -3-.

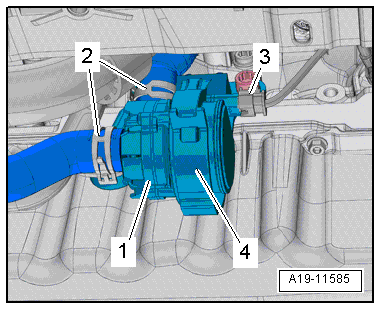

Fig 1: Identifying Charge Air Cooling Pump And Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Place a cloth underneath to catch any escaping coolant.

-- Clamp off the coolant hoses with the Hose Clamps - up to 25 mm 3094.

-- Loosen the clamps -2- and remove the coolant hoses.

-- Disengage the Charge Air Cooling Pump - V188- -1- from the loop -4-.
