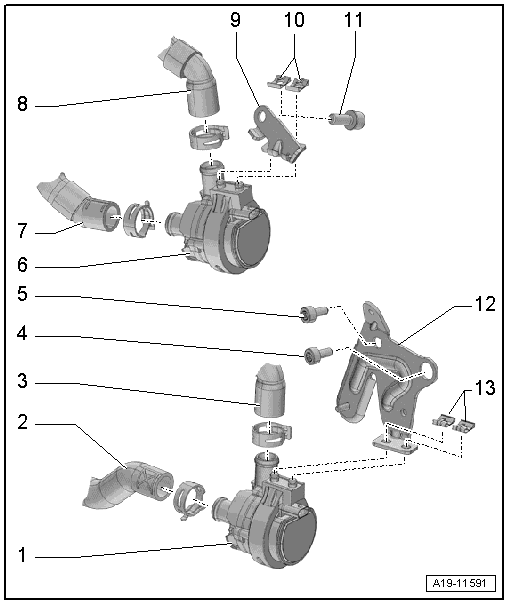

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Charge Air Cooling Pump -V188-
- Removing and installing, refer to Charge Air Cooling Pump -V188- .
- Coolant Hose
- Coolant Hose
- Bolt
- 40 Nm
- Bolt
- 40 Nm
- Heater Support Pump - V488-
- Removing and installing, refer to Heater Support Pump - V488- .
- Coolant Hose
- Coolant Hose
- Bracket
- for Heater Support Pump - V488-
- Clamps
- Bolt
- 40 Nm
- Bracket
- For Charge Air Cooling Pump -V188-
- Clamps
