EGR Motor 2 -V339-: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER .

-- If equipped remove the vacuum hose -arrow-.

Fig 1: Identifying Vacuum Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hose -1- for the crankcase ventilation on the air guide hose.

Fig 2: Identifying Release Buttons

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do this press the release button.

CAUTION: Depending on the vehicle equipment level and market-specific crankcase ventilation hose may be used, which cannot be removed from the cylinder head cover without being destroyed. For these version the crankcase ventilation hose can only be separated at the air guide hose connection.

-- Release the connector from the air guide hose and remove.

-- Unclip the wires on the intake tube.

-- Free up the vacuum hoses -arrows- on the air guide pipe.

-- Remove bolt -2- and tilt the air guide hose with the intake tube backward and remove from the turbocharger.

-- Loosen the hose clamps -1- and -2-, and remove the EGR vacuum regulator solenoid valve hose.

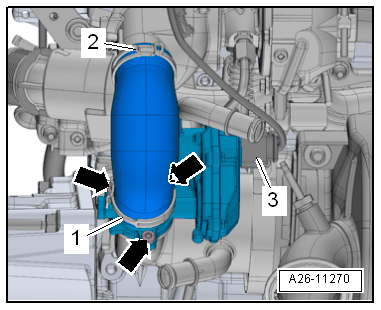

Fig 3: Identifying EGR Motor 2 And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the heat shield boot aside, and disconnect the connector -3-.

-- Remove the screws -arrows- and the EGR Motor 2 -V339-.
