EGR Motor -V338-: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

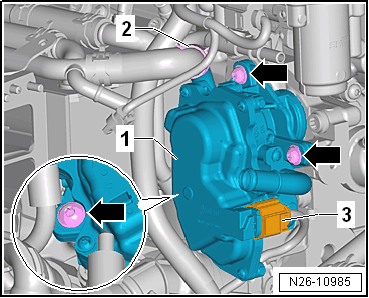

Fig 1: Identifying EGR Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Follow the guidelines for clean working conditions, refer to CLEAN WORKING CONDITIONS .

-- Remove the Throttle Valve Control Module -J338-, refer to THROTTLE VALVE CONTROL MODULE -J338- .

-- Disconnect the connector -3-.

-- Clamp off the coolant hose with the hose clamps - up to 25 mm 3094.

-- Loosen the clamp -2- and remove the coolant hose.

-- Remove the screws -arrows- and the EGR Motor -V338-.
