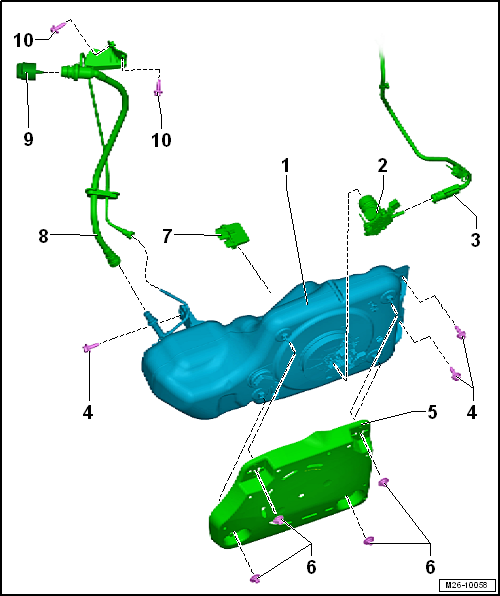

Overview - Reducing Agent Tank
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Reducing Agent Tank
- With:
- Delivery unit
- Reducing Agent Temperature Sensor -G685-
- Reducing Agent Reservoir Sensor -G697-
- Reducing Agent Quality Sensor -G849-
- Reducing Agent Tank Heater (Heating Circuit 1) -Z102-
- Installed location: in the luggage compartment right hole under the underbody.
- Removing and installing, refer to REDUCING AGENT TANK .
- With:
- Delivery Module
- With:
- Reducing Agent Pump -V437-
- Reducing Agent Return Flow Pump -V561-
- Overview, refer to OVERVIEW - REDUCING AGENT DELIVERY MODULE .
- Delivery Module, Removing and Installing, refer to REDUCING AGENT DELIVERY MODULE .
- With:
- Reducing Agent Line
- From the reducing agent delivery module to the Reducing Agent Injector -N474-.
- with Reducing Agent Line Heater (Heating Circuit 2) -Z104-
- Overview, refer to OVERVIEW - REDUCING AGENT DELIVERY LINE .
- Disconnecting the connector, refer to Figure
- Bolt
- 25 Nm
- Quantity: 3
- Cover
- for Reducing Agent Tank
- Nut
- 2 Nm
- Reducing Agent Heater Control Module -J891-
- Component location under the front passenger seat
- Removing and installing, refer to REDUCING AGENT HEATER CONTROL MODULE -J891- .
- Filler Tube
- Cap
- Bolt
- 11 Nm
