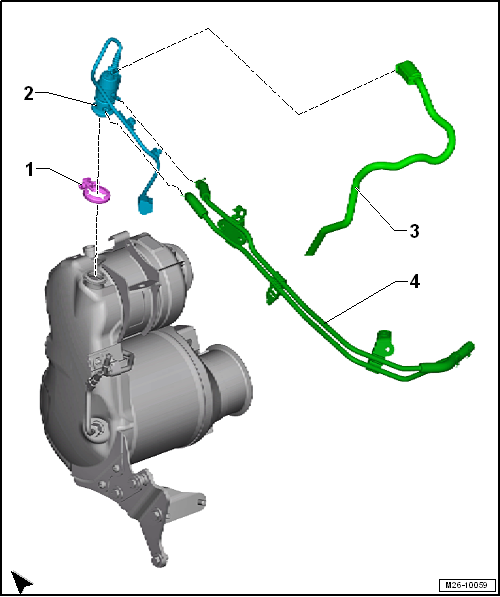

Overview - Reducing Agent Injector -N474-
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Screw-Type Clamp
- 5 Nm
- Replace after removing
- Reducing Agent Injector -N474-
- Removing and installing, refer to REDUCING AGENT INJECTOR -N474- .
- Reducing Agent Line
- From the reducing agent delivery module to the Reducing Agent Injector -N474-.
- with Reducing Agent Line Heater (Heating Circuit 2) -Z104-
- Overview, refer to OVERVIEW - REDUCING AGENT DELIVERY LINE .
- Disconnecting the connector, refer to Figure
- Coolant Lines
- Connection diagram, refer to CONNECTION DIAGRAM - COOLANT HOSES .
