Special Tools

Special tools and workshop equipment required

• Spindle 10-222 A/11
• Support Bracket 10-222 A/31
• Sealing Tool T10249
  Fig 1: Identifying Sealing Tool T10249

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Guide Pins T10093
  Fig 2: Identifying Guide Pins T10093

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapters for Service Position T10467
  Fig 3: Adapter T10467

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 4: Identifying Engine Support Bridge Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Mount T40093/5 from the Engine Support Supplement Set T40093
• Moveable Joint T40093/4 from the Engine Support Supplement Set T40093 (quantity: 2)
• Rail with Holes T40091/2 from the Engine Support Basic Set T40091
• Square Pipe T40091/1 from the Engine Support Basic Set T40091 (quantity: 2)
• Moveable Joint T40091/3 from the Engine Support Basic Set T40091 (quantity: 2)
• Engine Support Bridge 10-222 A
• Adapter 10-222 A/28
• Adapter 10 - 222 A/28-1 (quantity: 2)
• Shackle 10-222 A/12
• Bracket with Spindle and Hook 10-222 A/10

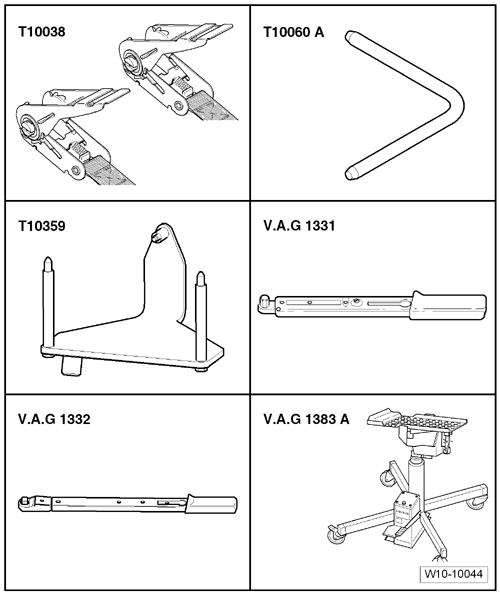

Fig 5: Identifying Tension Strap T10038 And Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Tensioning Strap T10038
• Locking Pin T10060 A
• Engine Support T10359 with Pin T10359/2
• Torque Wrench (5-50 Nm) V.A.G 1331
• Torque Wrench (40-200 Nm) V.A.G 1332
• Engine-/Gearbox Jack V.A.G 1383 A

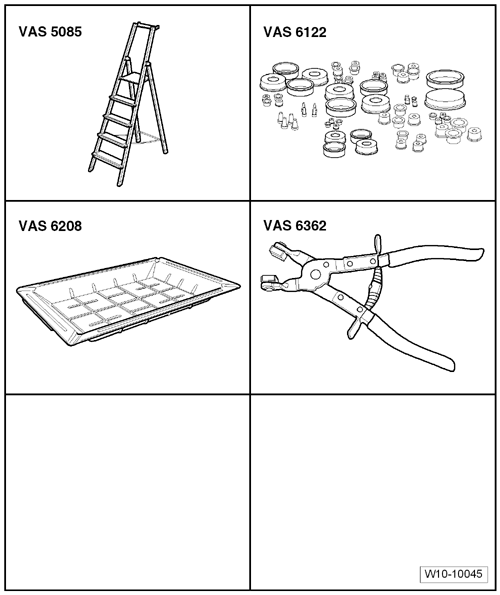

Fig 6: Identifying Step Ladder VAS 5085 And Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Step Ladder VAS 5085
• Engine Bung Set VAS 6122
• Drip Tray for VAS 6100 VAS 6208
• Hose Clip Pliers VAS 6362

Fig 7: Identifying Special Tools - Engine, Securing To Assembly Stand

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Sling 2024 A
• Shop Crane - Load Cap = 700-1200 KGVAS 6100
• Engine and Transmission Holder VAS 6095
