Suspension Strut: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Secure Engine/Gearbox JackVAG1383A with Engine/Gearbox Jack Adapter - Wheel Hub SupportT10149 to wheel hub using a wheel bolt.

Fig 1: Identifying Dimension Between Wheel Hub Center And Lower Edge Of Wheel Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the suspension strut on the wheel bearing housing and secure it with the internal multi-point bolt and a new nut.

Socket head bolt tip must point in direction of travel.

-- Remove Spreader Tool3424.

One of two markings -arrows- on spring plate must point in direction of travel.

Fig 2: Identifying Suspension Strut Markings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Untie the wheel bearing housing from the subframe.

-- Lift the wheel bearing housing carefully using Engine/Gearbox JackVAG1383A until it is possible to install the suspension strut/suspension strut tower bolts -arrows-.

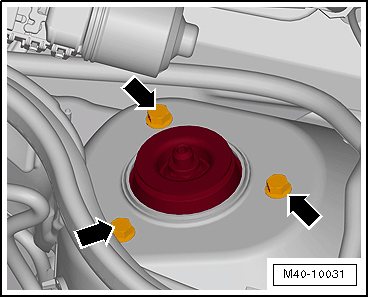

Fig 3: Identifying Upper Strut Mount Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If necessary, use a ladder, for example Step Ladder, to when installing the bolts.

-- Tighten hex bolts for upper strut mounting -arrows-.

-- Remove Engine/Gearbox Jack Adapter - Wheel Hub SupportT10149.

-- Tighten threaded connection of wheel bearing housing/suspension strut -arrow-.

Fig 4: Identifying Threaded Connection Of Wheel Bearing Housing/Suspension Strut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows-.

Fig 5: Identifying Nuts -Arrows- On Left And Right Side Of Vehicle, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert drive axle into wheel hub.

-- Insert wheel bearing housing with ball joint into control arm.

-- Attach the ball joint to the control arm -arrows-.

Fig 6: Identifying Nuts, Tightening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Make sure the ball joint boot is not damaged or twisted.

-- Tighten drive axle bolt onto the wheel hub.. Refer to THREADED CONNECTION, LOOSENING AND TIGHTENING .

-- Install the plenum chamber cover. Refer to PLENUM CHAMBER COVER .

Install in reverse order of removal.

-- Install the wheel and tighten the wheel bolts. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
