Drive Axle Overview, Triple Roller Joint AAR3300I Overview

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

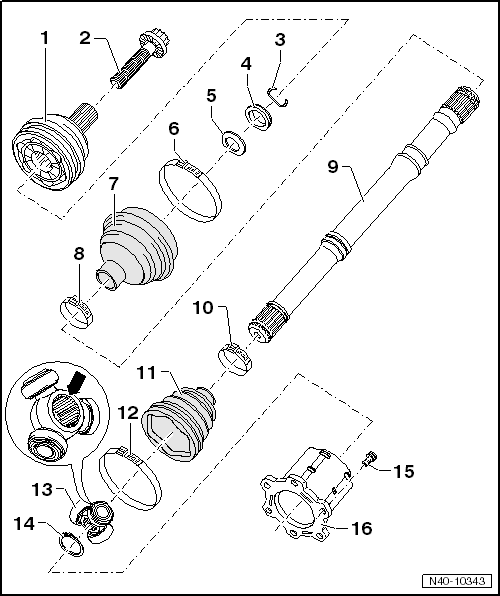

Fig 1: Identifying Assembly Overview: Drive Axle With Triple Roller Joint AAR3300I

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Outer CV Joint
- Replace only as complete unit.
- Removing. Refer to DRIVE AXLE, TRIPLE ROLLER JOINT AAR3300I .
- Installing: Drive onto shaft with plastic hammer until compressed circlip seats.
- Checking. Refer to OUTER CV JOINT, CHECKING .
Bolt
- 200 Nm + 180° turn
- Bolt, Loosening and Tightening. Refer to Removing .
- Replace after removal.
Locking Ring
- Replace after removal.
- Insert in shaft groove
Thrust Ring
- Installed position. Refer to Figure.
Plate Spring
- Installed position. Refer to Figure.
Clamp
- Replace after removal.
- Tensioning. Refer to Figure.
CV Boot
- Check for tears and scuffing.
- Material: polyelastomer.
Clamp
- Replace after removal.
- Tensioning. Refer to Figure.
Drive Axle
Clamp
- Replace after removal.
- Tensioning. Refer to Figure.
CV Boot for Triple Roller Joint
- Check for tears and scuffing.
Clamp
- Replace after removal.
- Tensioning. Refer to Figure.
Triple Roller Star with Rollers
The chamfer -arrow- points to drive axle splines.
Locking Ring
- Replace after removal.
- Insert in shaft groove
Internal Multi-Point Bolt
- First tighten diagonally to 10 Nm, then tighten diagonally again to the tightening specification.
- 70 Nm
Joint
