Drive Axle Overview, Triple Roller Joint AAR2600I

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

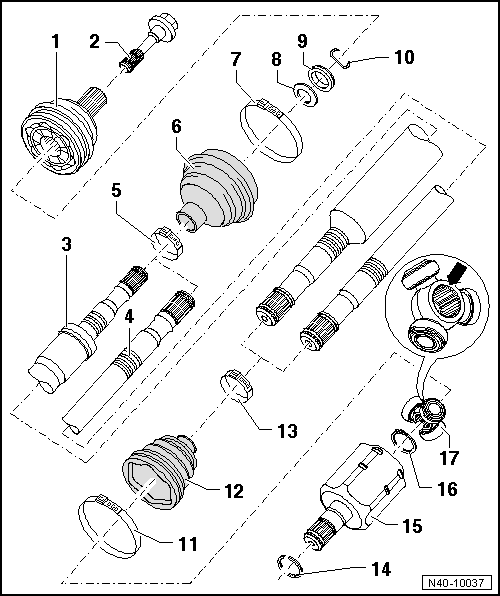

Fig 1: Drive Axle With Triple Roller Joint AAR2600i, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Outer CV Joint
- Replace only as complete unit.
- Removing. Refer to DRIVE AXLE, TRIPLE ROLLER JOINT AAR2600I .
- Installing: Drive onto shaft with plastic hammer until compressed circlip seats.
- Checking. Refer to OUTER CV JOINT, CHECKING .
Bolt
- 200 Nm +180°
- Bolt, Loosening and Tightening. Refer to Removing .
- Replace after removal.
Right Drive Axle
Left Drive Axle
Clamp
- Replace after removal.
- Tensioning. Refer to Figure.
CV Boot
- Check for tears and scuffing.
- Material: polyelastomer
Clamp
- Replace after removal.
- Tensioning. Refer to Figure.
Plate Spring
- Installed position. Refer to Figure.
Thrust Ring
- Installed position. Refer to Figure.
Locking Ring
- Replace after removal.
- Insert in shaft groove.
Clamp
- Replace after removal.
- Tension using Hose Clamp PliersVAG1275.
CV Boot for Triple Roller Joint
- Check for tears and scuffing.
Clamp
- Replace after removal.
- Tension using Hose Clamp PliersVAG1275.
Locking Ring
- Replace after removal.
Joint
Locking Ring
- Replace after removal.
- insert in groove on shaft using Circlip PliersVW161A.
Triple Roller Star with Rollers
The chamfer -arrow- points to drive axle splines.
