Steering Gear, Hydraulic Steering Gear: Removing

-- Turn the steering wheel to the straight-ahead position and remove the ignition key so that the steering wheel lock engages.

Vehicle with "Keyless Access" Keyless Locking and Starting System

-- Switch the ignition off and open the driver door so the steering wheel lock locks.

Continuation for All Vehicles

-- Remove the bolts -1- and cover -2-.

Fig 1: Identifying Footwell Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screw -arrow- from the universal joint -1-. Then remove the universal joint in direction of -arrow-.

Fig 2: Identifying Universal Joint And Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp off suction and return hose on the power steering fluid reservoir.

Fig 3: Identifying Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Hose Clamps up to 25 mm Diameter 3094

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the front wheels.

-- Remove the lower noise insulation. Refer to Description and Operation .

-- Remove exhaust system bracket from subframe -arrows-.

Fig 4: Identifying Exhaust System Bracket (Suspended Mount) Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the double clamp for the exhaust system.

-- Remove the left and right nut -1- from the coupling rod -3-.

Fig 5: Identifying Coupling Rod And Nuts And Stabilizer Bar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2- on the left and right sides.

-- Remove the nuts -arrows- on left and right side of vehicle.

Fig 6: Identifying Nuts On Left And Right Side Of Vehicle, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control arm from the ball joint.

-- Loosen nut of track rod ball joint, but do not unscrew yet.

Fig 7: Identifying Nut Of Track Rod Ball Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tie rod end from the wheel bearing housing and remove the nut.

1. Ball Joint Puller T10187

-- Remove the bolts -9- and -10- from the steering gear.

Fig 8: Locating Steering Gear Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -11- and then remove the pendulum support from the transmission.

Fig 9: Identifying Pendulum Support Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the subframe. Refer to SUBFRAME, SECURING .

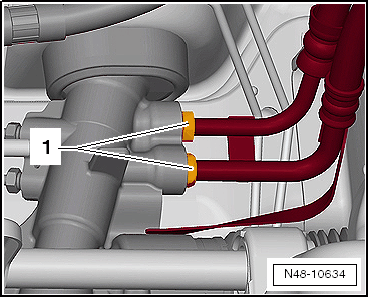

-- Remove the pressure line and return line -1- from the steering gear.

Fig 10: Identifying Pressure Line And Return Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the Engine/Gearbox Jack VAG1383A -1- under the subframe.

Fig 11: Identifying Engine/Gearbox Jack

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -5- and -6-.

-- Lower the subframe using the Engine/Gearbox Jack VAG1383A.

-- Take power steering gear out to the rear.

Fig 12: Identifying Subframe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
