Steering Gear Overview, Electro-Mechanical Steering Gear
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

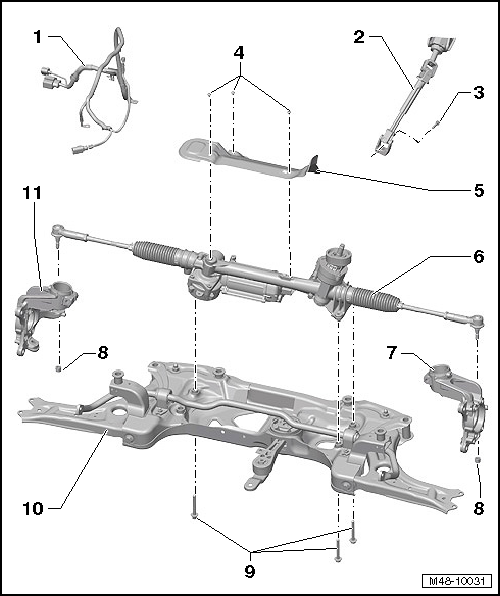

- Electric Wire
- Universal Joint
- Bolt
- 30 Nm
- Replace after removal.
- M8 x 35
- Bolt
- 6 Nm
- Self-tapping
- Heat Shield
- Power-Assisted Steering Gear
- With Power Steering Control Module -J500-.
- with Electromechanical Power Steering Motor -V187-.
- With Engine Speed (RPM) Sensor -G28-.
- With Steering Angle Sensor -G85-.
- With Steering Torque Sensor -G269-.
- Can be checked in Guided Fault Finding using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to STEERING GEAR, ELECTRO-MECHANICAL STEERING GEAR .NOTE: Correct any faults stored in the DTC memory before replacing the steering gear with the Vehicle Diagnostic Tester.
- Left Wheel Bearing Housing
- Nut
- 20 Nm +90°
- Replace after removal.
- Self-locking
- M12 x 1.5
- Bolt
- 50 Nm +90°
- Replace after removal.
- Subframe
- Right Wheel Bearing Housing
