Steering Column Overview

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.

Always replace self-locking nuts.

Always replace corroded bolts/nuts.

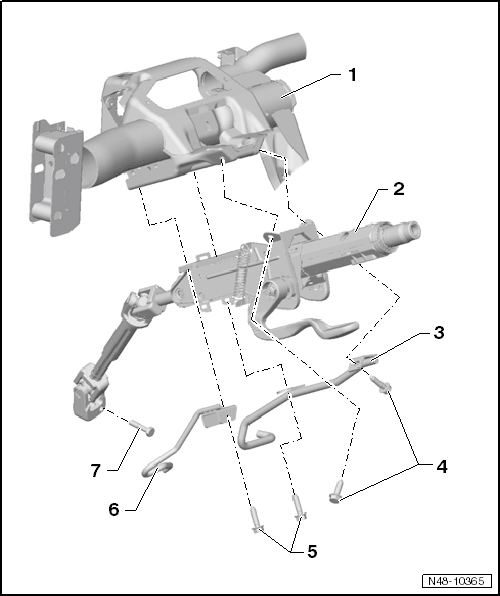

Fig 1: Identifying Steering Column Assembly Overview, From My 2009

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Assembly Carrier with Bracket
Steering Column
- Removing and Installing. Refer to STEERING COLUMN .
Brake Pedal Crash Brace
- Allocation.
Bolt
- 20 Nm
- Follow tightening sequence. Refer to Installing .
Bolt
- 20 Nm
- Follow tightening sequence. Refer to Installing .
Clutch Pedal Crash Brace
- Allocation.
Bolt
- 30 Nm
- Always replace if removed.
