Cylinder Numbering

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

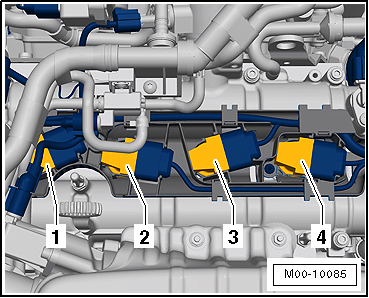

Fig 1: Identifying Ignition Sequence
GWWM00-10085Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE: Cylinder 1 is located opposite the force producing side.
Ignition sequence 1-3-4-2
