Main Bearing Shells Allocation

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

From the factory, the upper bearing shells are allocated to the cylinder block with the correct thickness. Colored spots serve to identify the bearing thicknesses.

The letters marked on the lower sealing surface of the cylinder block identify which bearing thickness must be installed in which location.

G -

Yellow

B -

Blue

W -

White

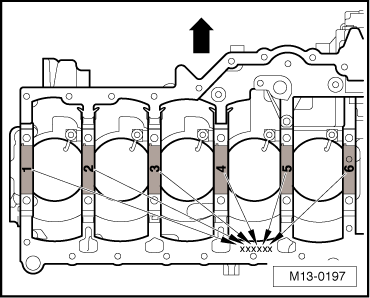

Fig 1: Identification Of Top Crankshaft Bearing Shells

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The -arrow- points in the direction of travel.

If the color markings are not legible, use the blue bearing shell.

The lower crankshaft bearing shells are always shipped as replacement part with "yellow" color marking.
