Flywheel Overview

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

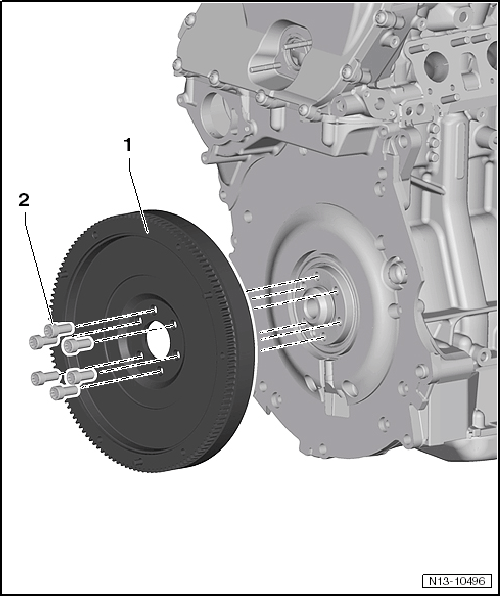

Fig 1: Flywheel Overview
GWWN13-10496Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Flywheel
  2. Bolts
    • 60 Nm + 90° turn
    • Replace after removing
