Coolant Thermostat: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Replace sealing ring -item 18- and O-ring -item 16-.

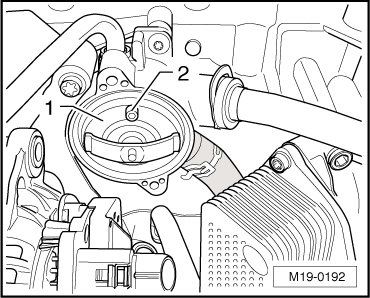

Note installation position of coolant regulator -1-. Valve -2- must point upward.

Fig 1: Identifying Installation Position Of Coolant Regulator
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Fill the coolant, refer to COOLANT, DRAINING AND FILLING .
