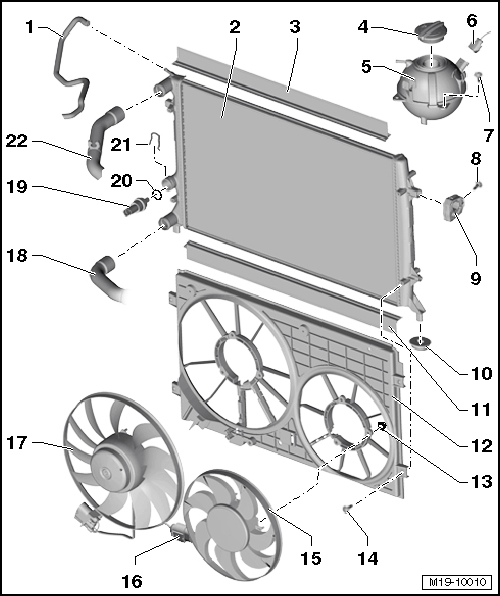

Radiator/Coolant Fan Overview
WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Spring clamps secure the coolant hoses to the radiator.
Coolant hose connection diagram, refer to COOLANT HOSE CONNECTION DIAGRAM .
- Coolant Hose
- From the rear coolant pipe
- Radiator
- Removing and installing, refer to RADIATOR .
- After replacing, replace entire amount of coolant.
- Upper Seal
- Cover
- Check using Cooling System Tester V.A.G 1274 B and Cooling System Tester - Adapter V.A.G 1274/9. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- The pressure relief valve must open at 1.4 to 1.6 bar (20 to 23.2 psi)
- Reservoir
- Perform a leak test on the cooling system using the Cooling System Tester V.A.G 1274 B and Adapter V.A.G 1274/8. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Connector
- Bolt
- 2 Nm
- Bolt
- 5 Nm
- Bearings
- For the radiator
- Base Plate
- Insert in lock carrier
- Lower Seal
- Air Shroud
- Nut
- 5 Nm
- Bolt
- 5 Nm
- Coolant Fan 2 -V177-
- Removing and installing, refer to COOLANT FAN
- Connector
- Coolant Fan -V7-
- Removing and installing, refer to COOLANT FAN .
- With Coolant Fan Control Module -J293-
- Lower Coolant Hose
- From connection for coolant regulator
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- O-ring
- Replace after removing
- Clamp
- Make sure it is secure
- Upper Coolant Hose
- From the coolant distribution housing to the cylinder head
