Engine Pre-Warmer Overview

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Not all vehicles have a pre-heater.

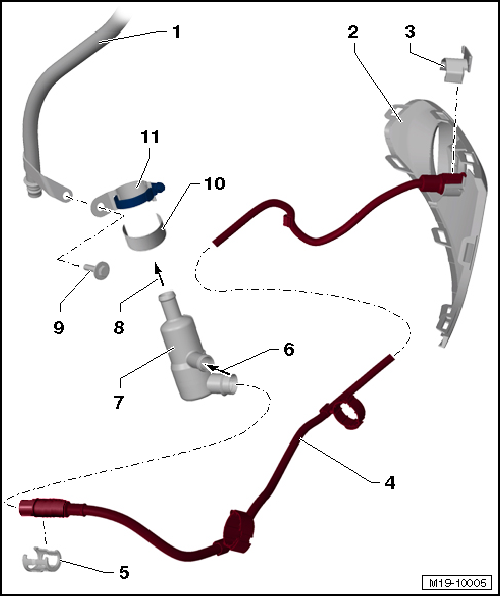

Fig 1: Identifying Engine Pre-Heater Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Guide Tube
- For the oil dipstick
Left Cover
- Inside the front bumper cover
Bracket
Connecting Cable
- Make sure it is attached securely
Retainer
From the Oil Cooler
- Refer to -item 2-.
Preheater
To coolant regulator housing
- Refer to -item 20-.
Bolt
- 25 Nm
Adhesive Foil
- Attached on the pre-heater near screw-type clamp to prevent corrosion on the contacts
Bracket with Screw-Type Clamp
- Tighten the screw-type clamp to 3 Nm.
