Part 1 Belt Pulley Side
WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

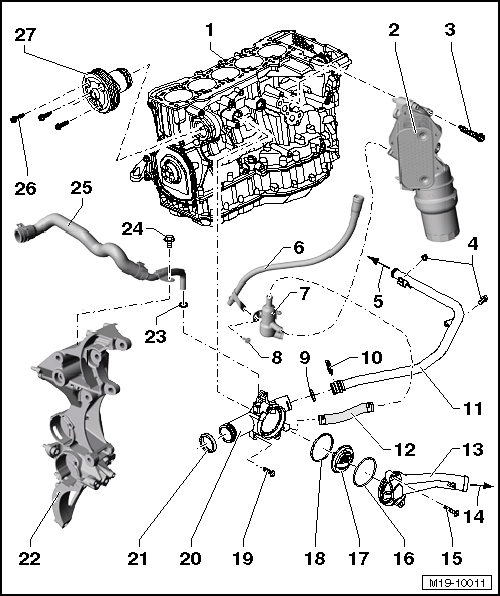

- Cylinder Block
- Engine Oil Cooler
- Bolt
- 25 Nm
- Bolt
- 10 Nm
- To Heater Core of Heater, Bottom
- Guide Tube
- For the oil dipstick
- Preheater
- Only vehicles with engine preheater
- Bolt
- 25 Nm
- O-ring
- Replace after removing
- Clamp
- Make sure it is secure
- Front Coolant Pipe
- Connecting Hose
- Connecting Piece
- To Lower Radiator
- Bolt
- 5 Nm
- O-ring
- Replace after removing
- Coolant Thermostat
- Removing and installing, refer to COOLANT THERMOSTAT .
- Note installation position:
Valve must be at top
- Checking (coolant thermostat installed):
Vehicle Diagnostic Tester
- Checking (coolant thermostat removed):
Heat up thermostat in water
Opens at: approximately 87°C (188°F) and stops at: approximately 102°C (215.6°F) opening travel: minimum 7 mm
- Seal
- Replace after removing
- Bolt
- 25 Nm
- Coolant Thermostat Housing
- Seal
- Replace after removing
- Auxiliary Components Bracket
- O-ring
- Replace after removing
- Bolt
- 9 Nm
- Coolant Hose
- To the front coolant pipe
- To the bottom of the reservoir
- Bolt
- 10 Nm
- Coolant Pump
- With integrated silicone sealing ring for the cylinder block seal
- Removing and installing, refer to COOLANT PUMP .
