Special Tools

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

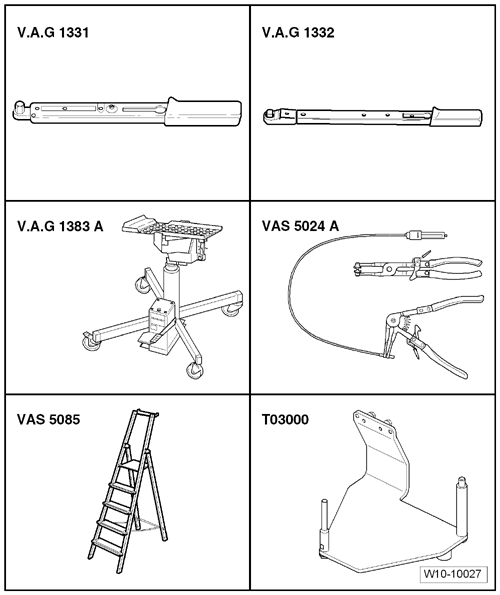

Fig 1: Identifying Special Tools -- Coolant Pump, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque Wrench 5-50 Nm V.A.G 1331
Torque Wrench 40-200 Nm V.A.G 1332
Engine/Gearbox Jack V.A.G 1383 A
Hose Clip Pliers
Step Ladder VAS 5085
Engine Holder Bracket T03000
Cable Ties
Foam Mat

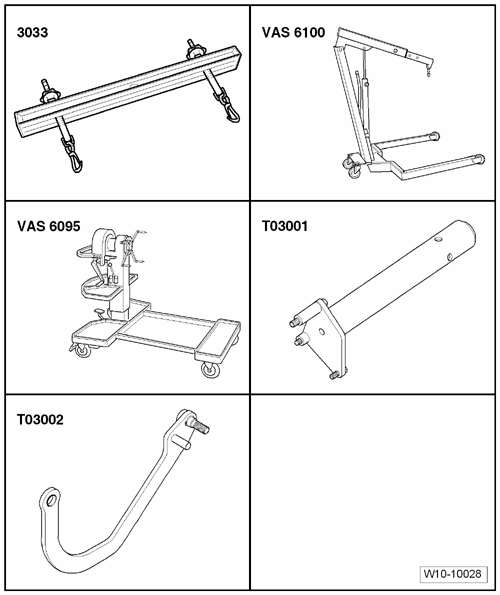

Fig 2: Identifying Special Tools -- Engine, Securing To Assembly Stand

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Sling 3033
Shop Crane VAS 6100
Engine and Transmission Holder VAS 6095
Engine and Transmission Holder - Engine Lateral Bracket T03001
Transport Arm T03002

Fig 3: Identifying Engine Support Bridge Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support Bridge 10 - 222 A
Engine Support - Automatic Transmission Hook 10 - 222 A /7
Engine Support -Bracket with Spindle and Hook 10 - 222 A /10
Shackle 10-222 A/12
Engine Support Bridge - Engine Support 2810 - 222 A /28
Fuel Injection Gauge Kit - Fuel Bleeder 3110 - 222 A /31
Rail with Holes T40091/2
From the Engine Support - Basic Set T40091
Mount T40093/5 from Engine Support Supplement Set T40093
Square Pipe T40091/1 from Engine Support Basic Set T40091. Quantity: 2
Movable Joint T40091/3 from Engine Support Basic Set T40091. Quantity: 2
Movable Joint T40093/4 from Engine Support Supplement Set T40093. Quantity: 2

Special tools and workshop equipment required

Hose Clamps Up to 25 mm Diameter 3094 and Hose Clamps - Up to 40 mm 3093

Fig 4: 3094 Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Crankshaft Adapter T03003

Fig 5: Crankshaft Adapter T03003
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Tensioning Strap T10038

Fig 6: Identifying Special Tools -- Tensioning Belt T10038
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Guide Pins T10093

Fig 7: Identifying Guide Pins T10093
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Adapters for Service Position T10467

Fig 8: Adapter T10467
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket - SW15V/175

Fig 9: Identifying Special Tool -- Socket Insert SW 15V/175
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
