Engine, Securing On Engine And Transmission Holder: Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Observe safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow repair instructions. Refer to GENERAL INFORMATION .

The transmission is separated from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

For performing work, secure engine using Engine and Transmission Holder - Engine Lateral Bracket T03001 to Engine and Transmission Holder VAS 6095.

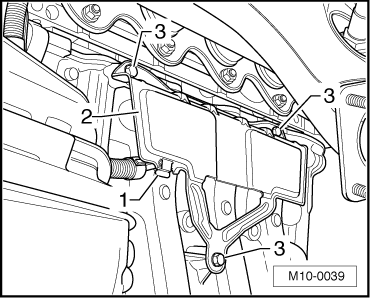

-- Pull off clamp -1- for the wiring harness, remove the bolts -3- and the cover plate -2-.

Fig 1: Identifying Clamp, Wiring Harness, Bolts & Cover Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

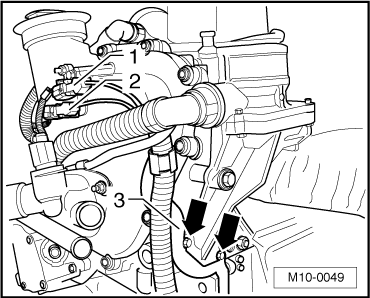

-- Disconnect the connectors -1 and 2- and remove the bracket -3- -arrows-.

Fig 2: Disconnecting Harness Connectors And Removing Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

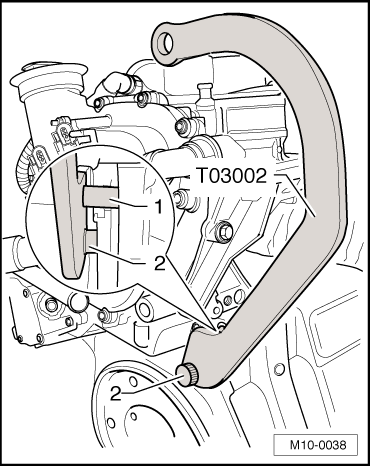

-- Install Transport Arm T03002 as shown.

Fig 3: Identifying Installation Of Transport Arm T03002

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pin -1- engages in cylinder block. Tighten knurled bolt -2- hand-tight.

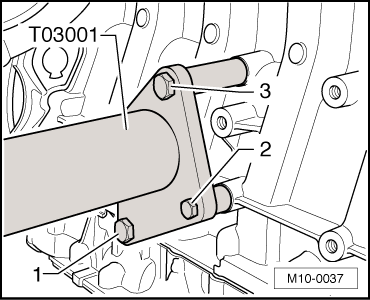

-- Attach Engine and Transmission Holder - Engine Lateral Bracket T03001.

Fig 4: Identifying Engine Lateral Bracket T03001

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tighten bolts -1 and 3- to 40 Nm, bolt -2- to 25 Nm.

NOTE:

Bolts are designed so that they cannot be lost.

When removing, the Engine and Transmission Holder - Engine Lateral Bracket T03001 must be held tense in direction of removal, otherwise the bolt -1- cannot be removed.

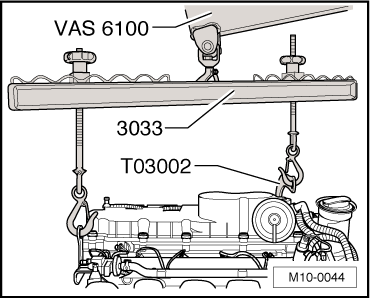

-- Engage the Lifting Tackle 3033 as shown and lift the engine out from the Shop Crane VAS 6100 using the Engine/Gearbox Jack V.A.G 1383 A.

Fig 5: Engaging Engine Sling 3033 And Lifting Out Using Shop Crane VAS 6100 From Engine/Transmission Jack V.A.G 1383 A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engine, Securing on Engine and Transmission HolderVAS 6095.
