Front Bumper Cover: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Slight changes may have to be made to removal and installation procedures of front bumper cover, depending upon equipment installed in vehicle.

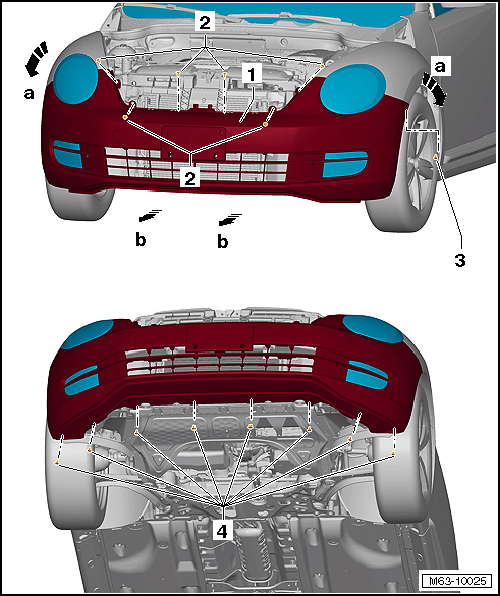

Fig 1: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

For Convertible Only

-- Remove noise insulation, refer to NOISE INSULATION OVERVIEW, CONVERTIBLE .

For All Vehicles

-- Remove the front trim, refer to RADIATOR GRILLE/FRONT TRIM .

-- Remove the front wheel housing liner from the front bumper.

-- Remove the left and right bolts -3- inside the wheel housing (facing up).

-- Remove the bolts -4- from underneath.

-- Remove the bolts -2- from above.

A second technician is required for the rest of the removal procedure.

-- Pull the front bumper cover -1- out of the guides on the left and right sides of the fender in direction of -arrows a-.

-- Remove the front bumper cover -1- from the striker pin in the mount next to the left and right headlamp.

-- Remove the front bumper cover in direction of -1- -arrows b- from the vehicle. A second technician is needed for this.

-- Disconnect the connectors from any electrical components.
