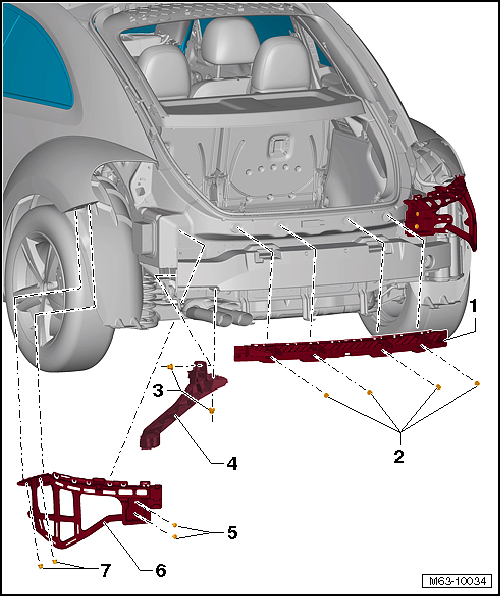

Guides And Brackets Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Center Guide
- Nut
- 3 Nm
- Quantity: 4
- For attaching the center guide -1-
- Nut
- 3 Nm
- Two on each side
- Mounting attachment -4-
- Attachment
- Left and right
- Remove the exhaust system suspended mount in order to remove or install the right attachment, refer to [For engine(s) CPRA, CPKA, CPLA, CPPA] Removal and Installation or [For engine(s) CVCA] Removal and Installation or [For engine(s) CCTA, CBFA] Removal and Installation or [For engine(s) CBUA] Removal and Installation or [For transmission(s) 02E, 02Q] [For engine(s) CVCA, CJAA] Removal and Installation .
- Bolt
- 3 Nm
- Quantity of one or two per side depending on allocation.
- Side guide mount -6-
- Side Guide
- Left and right
- Nut
- 3 Nm
- Two on each side
- Side guide mount -6-
