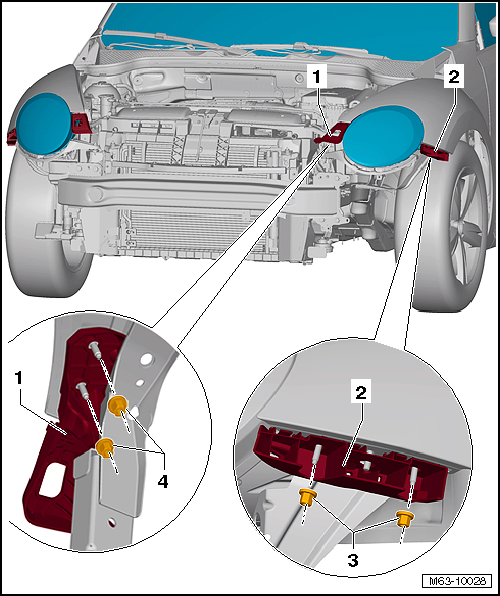

Guides And Brackets Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Left and right
- Removing and Installing, refer to FRONT BUMPER COVER ATTACHMENTS => Bracket, Removing and Installing .
- Side Guide
- Left and right
- Nut
- 3 Nm
- 2 on each side
- For attaching side guide -2-
- Nut
- 3 Nm
- 2 on each side
- For attaching the bracket -2-
