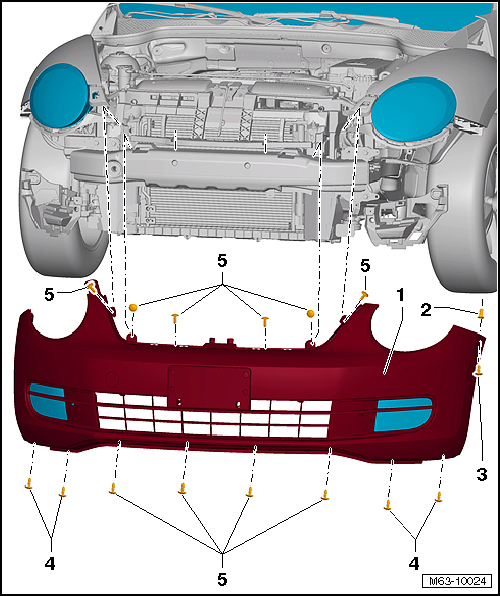

Front Bumper Cover Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on model version, there are minor differences in the front bumper covers.
- Front Bumper Cover
- PP/EPDM material
- Removing and Installing, refer to FRONT BUMPER COVER .
- Expanding Nut
- One on each side
- Replace if damaged
- Bolt
- 2 Nm
- One on each side
- Pointing upward
- Bolt
- 2 Nm
- Two on each side
- Attached to the wheel housing liner
- Bolt
- 2 Nm
- Four bolts from below
- Six pieces from above
- Attached to the lock carrier
