Rear Fender Protective Film
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

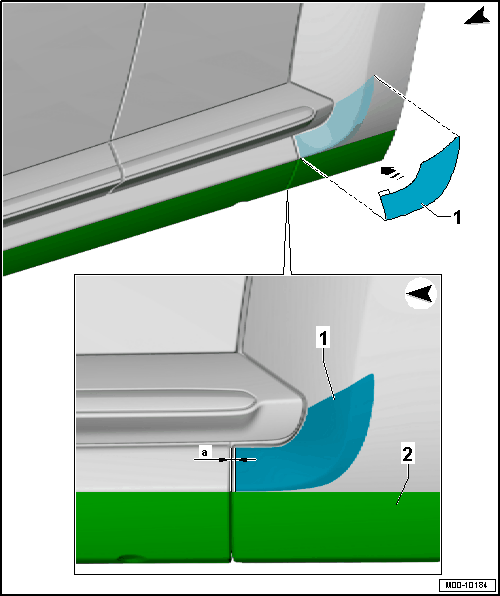

View on the Left Side
- 1 -
Protective Film
- The surface must be free of wax, dust and grease.
- Before bonding, observe the assembly instructions, refer to ASSEMBLY INSTRUCTIONS FOR BONDING DECORATIVE AND PROTECTIVE FILM .
- Remove the protective paper from the adhesive side.
- Attach the protective film according to dimension -a- and press it on with even pressure.
- Bonding the protective film using the "wet-in-wet procedure" is permitted, refer to ASSEMBLY INSTRUCTIONS FOR BONDING DECORATIVE AND PROTECTIVE FILM .
- 2 -
Underbody Protection
- Bring the protective film -1- to touch the underbody protection.
- a -
Dimension
- Attach the protective film -1- according to dimension -a-.
Dimension -a- = 2 mm ± 0.5 mm
- Attach the protective film -1- according to dimension -a-.
