Secondary Air Injection Pump Motor: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Observe safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow repair instructions. Refer to GENERAL INFORMATION .

-- Remove the noise insulation. Refer to Description and Operation .

-- Disconnect the connectors -1 and 2-.

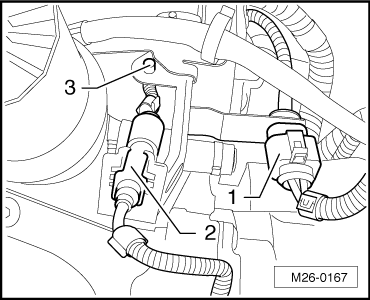

Fig 1: Identifying Connectors, Cable Guide Clip & Cable Clip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clip -3- from the cable guide.

-- Press out cable clip at top front mounting bolt.

-- Remove the pressure hose -1- and the intake hose -2-. To do this, compress securing ring.

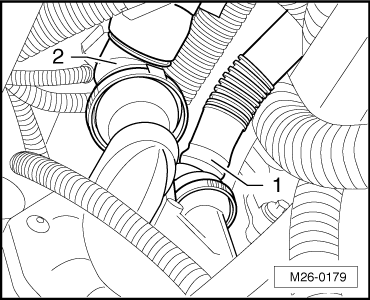

Fig 2: Disconnecting Pressure Hose And Intake Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolts and the Secondary Air Injection Pump Motor -V101-. When doing this, press lower bolt (rubber bushing) slightly in order to get by at transmission.
