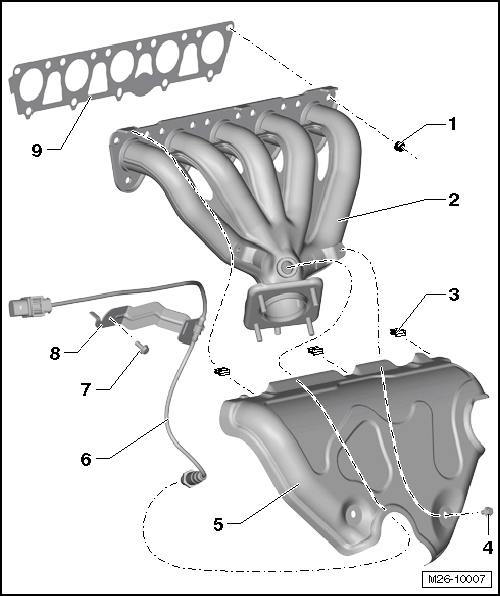

Exhaust Manifold Overview
WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 23 Nm
- Replace after removing
- Exhaust Manifold
- Coat stud bolts on cylinder head with Hot Bolt Paste G 052 118 A3.
- Remove upward
- Clamp
- Bolt
- 10 Nm
- Heat Shield
- Heated Oxygen Sensor -G39-
- 55 Nm
- Removing and installing with a Ring Spanner Set for Oxygen Sensor 3337
- Coat the threads on the new heated oxygen sensors with assembly paste.
- When using an oxygen sensor once again, only use Hot Bolt Paste G 052 112 A3 to grease the thread; do not let paste get onto slits of oxygen sensor body
- If sealing ring is leaking cut open and replace.
- Connector color: black
- Bolt
- 10 Nm
- Bracket
- For the Heated Oxygen Sensor -G39-
- Seal
- Replace after removing
