Exhaust Cleaning System Overview, CBUA

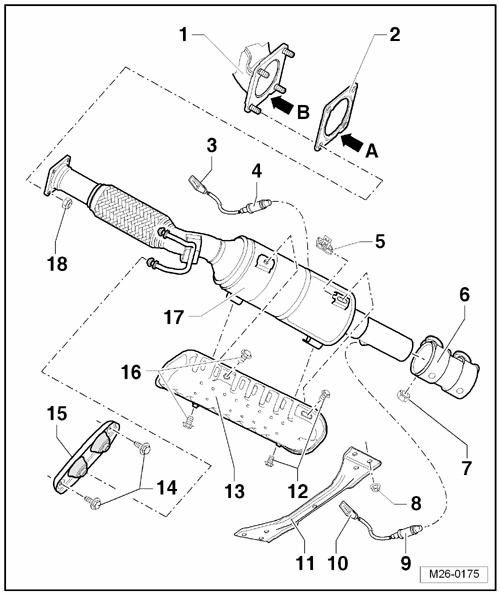

Fig 1: Front Exhaust Pipe With Catalytic Converter And Attachments (Engine Code BGQ), Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Exhaust Manifold
   • Coat stud bolts with Hot Bolt Paste G 052 118 A3.
2. Seal
   • Note installation position:

     Gasket recess -arrow A- must be located at exhaust manifold recess -arrow B-.

   • Replace after removing
3. Connector
   • Black 4-pin
4. Oxygen Sensor in Bank 1 Center Three Way Catalytic Converter -G465-
   • 55 Nm
   • Removing and installing with a Ring Spanner Set for Oxygen Sensor 3337
   • Coat the threads on the new heated oxygen sensors with assembly paste.
   • When using an oxygen sensor once again, only use Hot Bolt Paste G 052 112 A3 to grease the thread; do not let paste get onto slits of oxygen sensor body
   • If sealing ring is leaking cut open and replace.
5. Spring Nut
   • Insert from front
6. Clamp
   • Before tightening, ensure exhaust system is tension-free, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
   • Installed position, refer to Fig 2
   • Tighten bolts evenly
7. Nut
   • 23 Nm
8. Nut
   • 20 Nm
9. Oxygen Sensor after Three Way Catalytic Converter -G130-
   • 55 Nm
   • Removing and installing with a Ring Spanner Set for Oxygen Sensor 3337
   • Coat the threads on the new heated oxygen sensors with assembly paste.
   • When using an oxygen sensor once again, only use Hot Bolt Paste G 052 112 A3 to grease the thread; do not let paste get onto slits of oxygen sensor body
   • If sealing ring is leaking cut open and replace.
10. Connector
    • Brown, 4-pin
    • Installed position, refer to Fig 3
11. Front Tunnel Bridge
12. Bolt
    • 5 Nm
13. Heat Shield
    • For catalytic converter
14. Bolt
    • 23 Nm
15. Suspended Mount
    • Replace if damaged
16. Bolt
    • 10 Nm
17. Front Exhaust Pipe
    • With catalytic converter
    • Protect from shocks and impact stress
    • With decoupling element
    • Do not bend the decoupling element more than 10° - otherwise it may get damaged
    • Removing and installing, refer to CATALYTIC CONVERTER .
    • Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
18. Nut
    • 23 Nm
    • Replace after removing

Fig 2: Identifying Installation Position Of Double Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The -arrow- points in the direction of travel.

-- Line up the clamp -1- with the marking on the catalytic converter -2-.

-a- = 5 mm

The bolts must be on right side. They must not project beyond the lower edge of the clamp.

Fig 3: Disconnecting Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130 Electrical Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The connector is located to the right, on the vehicle floor under the cover.

1. Oxygen Sensor after Three Way Catalytic Converter -G130- connector, brown
2. Bracket
3. Harness connector for Oxygen Sensor in Bank 1 Center Three Way Catalytic Converter -G465-, black
