Exhaust Cleaning System Overview, CBTA

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

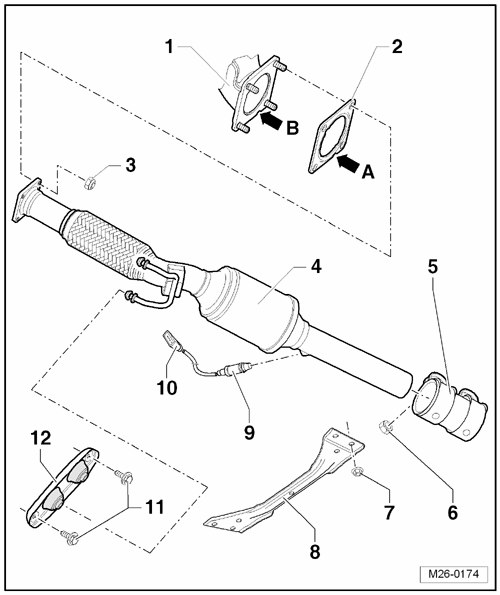

Fig 1: Front Exhaust Pipe With Catalytic Converter And Attachments (Engine Codes BGP, BTK), Assembly Overview
GWWM26-0174Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Exhaust Manifold
    • Coat stud bolts with Hot Bolt Paste G 052 118 A3.
  2. Seal
    • Note installation position:

      Gasket recess -arrow A- must be located at exhaust manifold recess -arrow B-.

    • Replace after removing
  3. Nut
    • 23 Nm
    • Replace after removing
  4. Front Exhaust Pipe
    • With catalytic converter
    • Protect from shocks and impact stress
    • With decoupling element
    • Do not bend the decoupling element more than 10° - otherwise it may get damaged
    • Removing and installing, refer to CATALYTIC CONVERTER .
    • Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
  5. Clamp
  6. Nut
    • 23 Nm
  7. Nut
    • 20 Nm
  8. Front Tunnel Bridge
  9. Oxygen Sensor after Three Way Catalytic Converter -G130-
    • 55 Nm
    • Removing and installing with a Ring Spanner Set for Oxygen Sensor 3337
    • Coat the threads on the new heated oxygen sensors with assembly paste.
    • When using an oxygen sensor once again, only use Hot Bolt Paste G 052 112 A3 to grease the thread; do not let paste get onto slits of oxygen sensor body
    • If sealing ring is leaking cut open and replace.
  10. Connector
    • Brown, 4-pin
    • Installed position, refer to Fig 3
  11. Bolt
    • 23 Nm
  12. Suspended Mount
    • Replace if damaged
Fig 2: Identifying Installation Position Of Double Clamp
GWWM26-0182Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The -arrow- points in the direction of travel.

-- Line up the clamp -1- with the marking on the catalytic converter -2-.

-a- = 5 mm

Mounting bolts must not project beyond the lower edge of the clamp.

Fig 3: Harness Connector For Oxygen Sensor - Installation Position
GWWM26-0180Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The connector is located to the right, on the vehicle floor under the cover.

  1. Bracket
  2. Oxygen Sensor after Three Way Catalytic Converter -G130- Connector, brown
