Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 5-50 NmV.A.G 1331

Fig 1: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine bung set VAS 6122 (not illustrated)
Hose Clip Pliers VAS 6362

Fig 2: Clamp Pliers VAS 6362
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
15 mm socketVAS 6454

Fig 3: Identifying Socket Insert VAS 6454
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pliers 3314

Fig 4: Identifying Pliers 3314
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

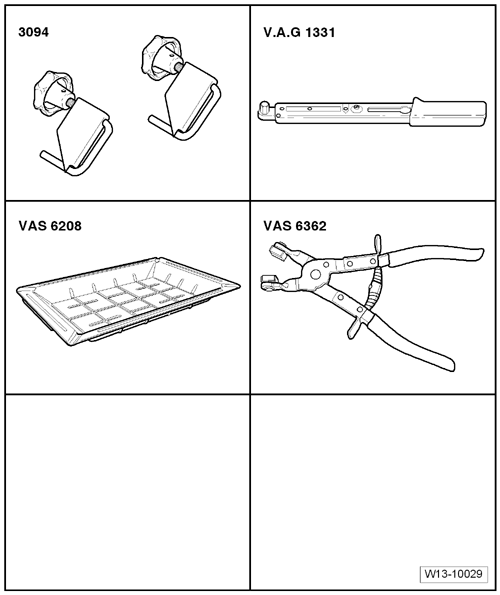

Fig 5: Identifying 3094, V.A.G. 1331, VAS 6208 And VAS 6362

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Hose Clamps up to 25 mm Diameter3094
Torque Wrench 5-50 Nm V.A.G 1331
Drip Tray VAS 6208
Hose Clip Pliers VAS 6362

Edition V0059091421 FB 1019389, 06/30/2014 - JLH
