Fastener Tightening Specifications

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Component	Fastener Size	Nm
Camshaft Toothed Belt Sprocket to Camshaft Bolt¹	-	20 + 45°
Camshaft Hub Bolt	-	100
Crankshaft Toothed Belt Gear to Crankshaft Bolt¹	-	120 + 90°
Toothed Belt Idler Roller to Cylinder Block Nut	-	20
Toothed Belt Tensioner to Cylinder Head Stud Nut¹	-	20 + 45°
Center and Lower Toothed Belt Guard Bolt	-	10
Engine Mount Bracket¹	-	40 Nm +180°
Rear Toothed Belt Guard to Cylinder Block/Head Bolts³	-	10¹
Rear Toothed Belt Guard to Cylinder Block/Head Bolts³	-	20
Cylinder Head Cover Bolt	-	9
High Pressure Pump Toothed Belt Sprocket¹	-	20 + 90°
Toothed Belt Idler Roller to Cylinder Block Bolt²	-	15
Toothed Belt Idler Roller to Cylinder Block Bolt²	-	50 + 90°¹
¹ Always replace ² For bolt clarification, refer to items -7 and 9- in RIBBED BELT DRIVE WITH TENSIONING ROLLER AND A/C COMPRESSOR OVERVIEW ³ For bolt clarification, refer to items -14 and 15- in the TOOTHED BELT OVERVIEW

Frame Tightening Specifications and Sequence

Fig 1: Identifying Bearing Frame Bolts/Nuts Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in 2 steps and in the sequence shown:

Stage	Bolts	Tightening Specification
1.	-1- through -24-	Install all the way in by hand. The guide frame must touch the entire contact surface on the cylinder head.
2.	-1- through -24-	10 Nm

Tightening Sequence

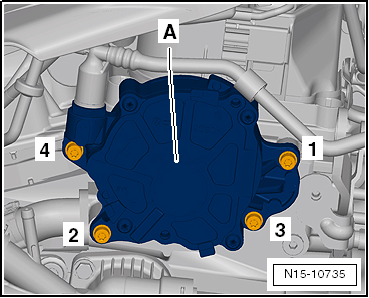

Fig 2: Identifying Vacuum Pump Bolt Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the vacuum pump -A- in the sequence -1- through -4-.

Tightening Specification

Component	Tightening Specification
Vacuum pump bolts	10 Nm
