Right/Left MULTIFUNCTION Buttons On Steering Wheel -E441- / -E440-, Through My 2013: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

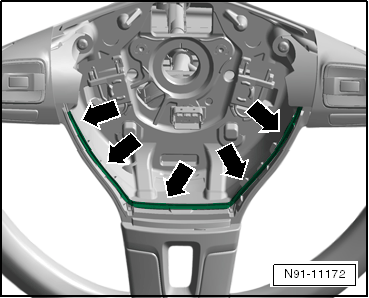

-- Make sure to route the wires between both blocks of buttons as shown -arrows-.

Fig 1: Locating Routed Wire

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

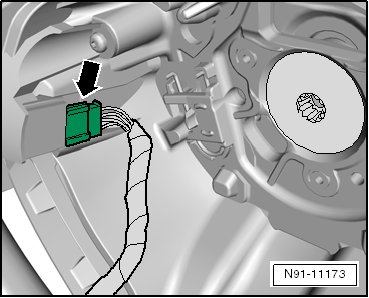

-- Make sure the black connector is connected to the left block of buttons -arrow-.

Fig 2: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Code the Steering Column Electronics Control Module -J527- using the Vehicle Diagnostic Tester.
