Connector Assignments, Rcd 300+: Notes
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

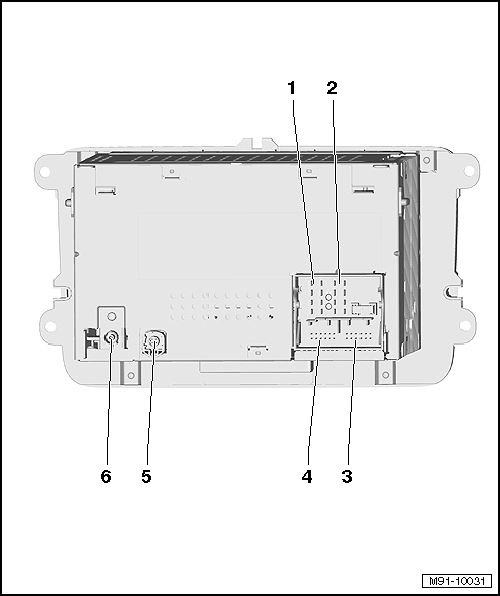

- Multi-Pin Connector 1, 8-pin, Speaker Outputs
- Terminal assignment. Refer to Multi-pin Connector 1, 8-pin, Speaker Outputs .
- Multi-Pin Connector 2, 8-pin, CAN Bus, Power Supply
- Terminal assignment. Refer to Multi-pin Connector 2, 8-pin, CAN Bus, Power Supply .
- Multi-Pin Connector 3, 12-pin, Telephone
- Terminal assignment. Refer to Multi-pin Connector 3, 12-pin, Telephone .
- Multi-pin Connector 4, 12-pin, Audio Inputs
- Terminal assignment. Refer to Multi-pin Connector 4, 12-pin, Audio Inputs .
- USB Connection
- Terminal assignment. Refer to USB Connection, 4-pin .
- Antenna Connection
- AM/FM
- Antenna systems. Refer to OVERVIEW - ANTENNA SYSTEMS .
