USB Connection, 4-pin

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

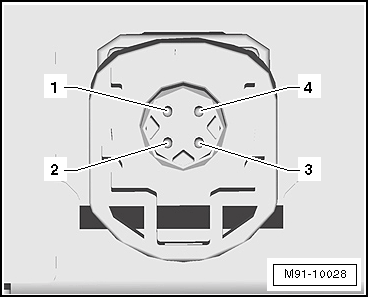

Fig 1: Identifying USB Connection, 4-Pin
GWWM91-10028Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Ground
  2. D (-)
  3. VCC (+5 V)
  4. D (+)
