Overview - Telephone, UHV High With BLUETOOTH, 9ZA
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
The cell phone preparation "UHV-High" is offered only together with a radio/RNS.
The "UHV high" is a permanently installed telephone (Telephone Transceiver -R36-) with wireless access to stored telephone data via a Bluetooth on the vehicle system Cellular Telephone -R54-.
The "UHV-High" requires that the Cellular Telephone -R54- to be paired has a Bluetooth interface and supports the "Remote SIM Access Profile" (rSAP).
With "rSAP", telephone entries, for example, can be accessed on the Cellular Telephone -R54- SIM card.
Use the => in the "Guided Fault Finding" function when servicing or performing Fault Finding.

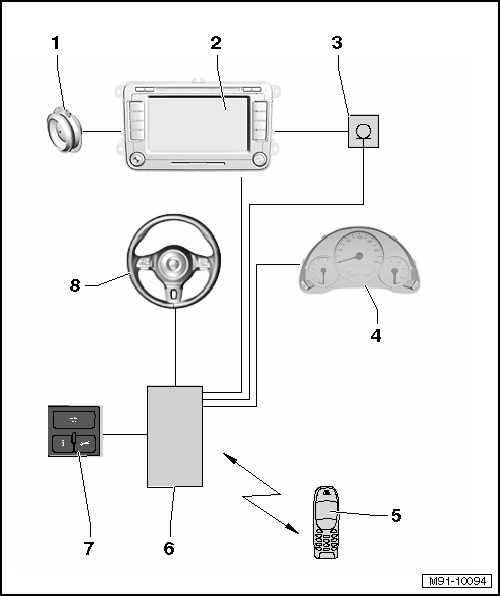

- Sound System
- Radio -R- /Radio/Navigation Display Unit Control Module -J503-
- Telephone Microphone -R38-
- Instrument Cluster Control Module -J285-
- Cellular Telephone -R54-
- Telephone Transceiver -R36-
- Cellular Telephone Preparation Control Head -E508-
- Multifunction Steering Wheel
