Overview - Telephone Components, UHV In RNS 315, 9ZI, 9ZT

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The UHV with RNS 315 is comprised from the RNS 315 with an integrated telephone and Bluetooth module. The Cellular Telephone -R54- is connected via Bluetooth.

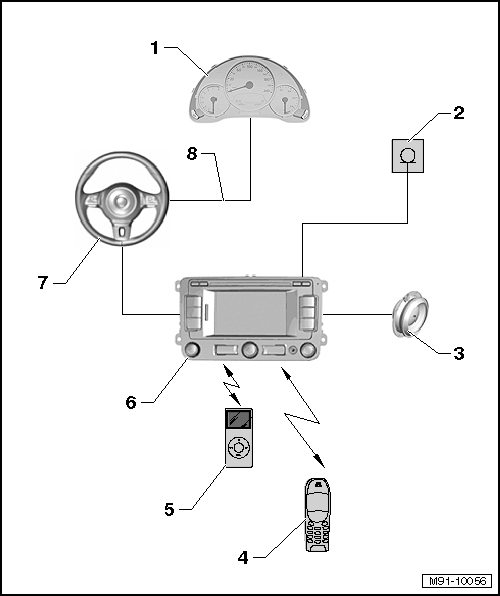

Fig 1: UHV IN RNS 315 Overview
GWWM91-10056Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Instrument Cluster Control Module -J285-
  2. Telephone Microphone -R38-
  3. Speaker System
  4. Cellular Telephone -R54-
  5. External Multimedia Player
  6. Radio/Navigation Display Unit Control Module -J503-
  7. Multifunction Steering Wheel
  8. CAN Bus
