Sound System, 6 Speakers, 8RL

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

6 - Speaker System, 8RL

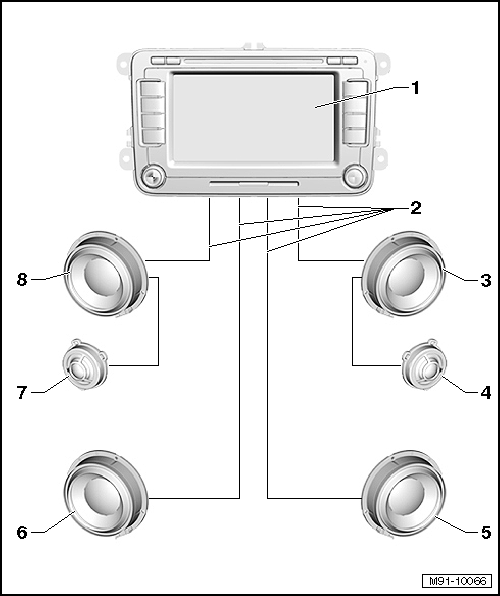

Fig 1: 6-Speaker System Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radio -R-
LF Wires
Right Front Bass Speaker -R23- in the Right Front Door
Right Front Treble Speaker -R22- inside the Right Mirror Triangle
Right Rear Bass Speaker -R17- in the Right Rear Side Trim Panel
Left Rear Bass Speaker -R15- in the Left Rear Side Trim Panel
Left Front Treble Speaker -R20- inside the Left Mirror Triangle
Left Front Bass Speaker -R21- in the Left Front Door
