Overview - Mobile Online Services, El2
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

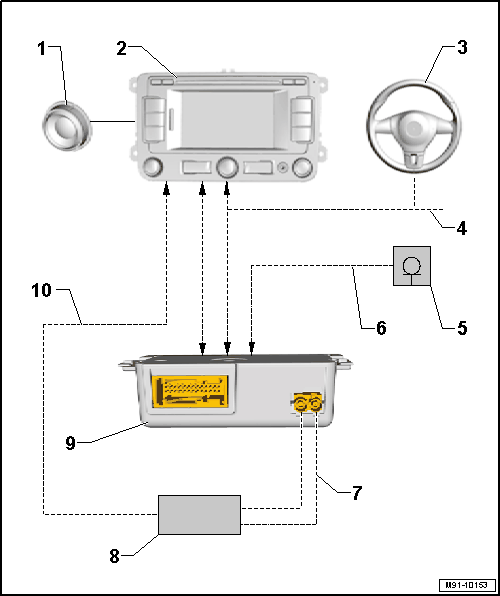

The mobile online services are based on the OCU, Online Connectivity Unit, and the Control Module for Emergency Call Module and Communication Unit -J949-.
The Control Module for Emergency Call Module and Communication Unit -J949- is installed instead of the Telephone Transceiver -R36-. The component location is the same. In addition to the UHV, the Control Module for Emergency Call Module and Communication Unit -J949- also includes an emergency call module and a compass module. A separate SIM card is installed for the emergency call function and roadside assistance.
- Speaker System
- Radio/RNS
- Multifunction Steering Wheel
- CAN Bus
- Telephone Microphone -R38- /Cellular Telephone Preparation Control Head -E508-
- Wire from Front Interior Lamp -W1-
- GPS Antenna -R50- wire
- Only with radio
- Roof Antenna -RX5-
- GSM/GPS
- Suppression Filter -C10- in the GSM wire
- Control Module for Emergency Call Module and Communication Unit -J949-
- GPS Antenna -R50- wire
- Only with RNS
