Component Location Overview - Radio, Rcd 510

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

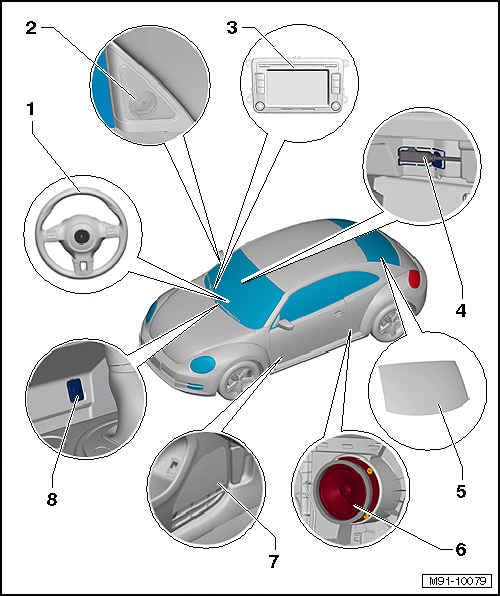

Fig 1: Identifying Radio Components Location Overview (RCD 510)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Multifunction Steering Wheel
- Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL
Front Treble Speaker
- Inside the mirror triangle
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
Radio -R-
- Connector assignment. Refer to CONNECTOR ASSIGNMENTS, RCD 510 .
- Transport protection, activating/deactivating, refer to Transportation Safeguard, Activating and Deactivating
- Electronic Anti-Theft System. Refer to Electronic Anti-Theft Protection .
- Removing and installing. Refer to RADIO .
Multimedia System Control Module -J650-
- In the glove compartment
- Refer to OVERVIEW - CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES
Antenna -R11- /Radio Antenna 2 -R93-
- Sedan: inside the rear window
- Convertible: inside the windshield
Rear Speaker
- In the side trim
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
Front Bass Speaker
- Inside the door trim panel
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
External Audio Source Connection -R199-
- In center console
- Refer to OVERVIEW - External Audio Source Connection -R199-, AUX IN
