Component Location Overview - Radio, Rcd 030+

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

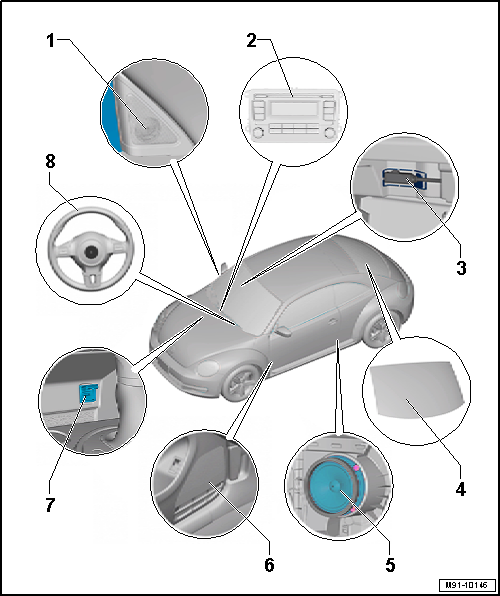

Fig 1: Identifying Radio Components Location Overview (RCD 030+)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Treble Speaker
- Inside the mirror triangle
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
Radio -R-
- Connector assignment. Refer to CONNECTOR ASSIGNMENTS, RCD 030+ .
- Removing and installing. Refer to RADIO .
Multimedia System Control Module -J650-
- in the glove compartment
- Refer to OVERVIEW - CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES
Antenna -R11- /Radio Antenna 2 -R93-
- Sedan: inside the rear window
- Convertible: inside the windshield
Rear Speaker
- Inside the rear side trim panel
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
Front Bass Speaker
- Inside the door trim panel
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
External Audio Source Connection -R199-, USB Port
- In center console, front
Multifunction Steering Wheel
- Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL
