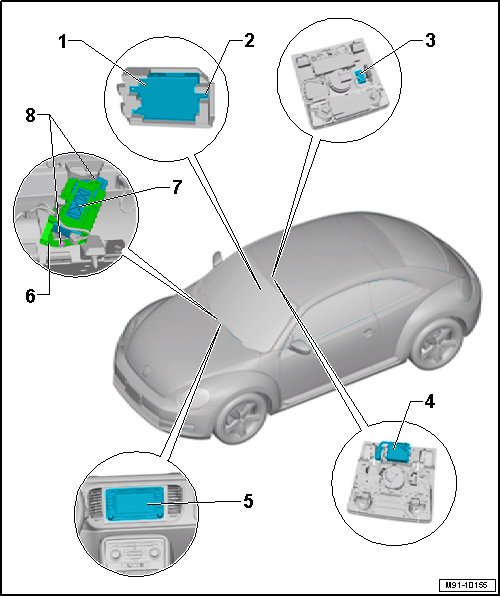

Component Location Overview - Mobile Online Services
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Control Module for Emergency Call Module and Communication Unit -J949-
- Connector assignment. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, CONNECTORS .
- Removing and installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949- .
- Foam insert
- Telephone Microphone -R38-
- In the Front Interior Lamp -W1-
- Removing and installing. Refer to Telephone Microphone -R38- .
- Cellular Telephone Preparation Control Head -E508-
- In the Front Interior Lamp -W1-
- Removing and installing. Refer to CELLULAR TELEPHONE PREPARATION CONTROL HEAD .
- Radio/RNS
- Bracket
- Multimedia System Control Module -J650-, UMI
- Screw
- 2 Nm
- Quantity: 2
