Oil Pump: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

-- Replace the O-ring.

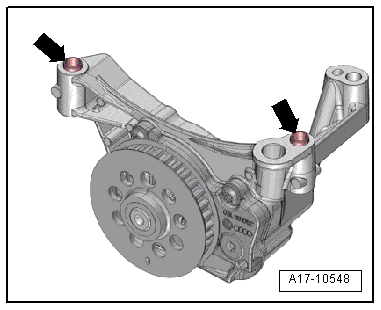

-- Replace any missing alignment sleeves -arrows- for centering the oil pump.

Fig 1: Identifying Alignment Sleeves

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the toothed belt sprocket to make sure the oil pump moves easily.

-- Replace the oil pump if it does not move easily.

NOTE:

The toothed belt can start to sag after a long time.

-- Check the toothed belt for the oil pump.

-- Replace the toothed belt if it is damaged.

-- Engage the oil pump and toothed belt sprocket in the toothed belt and tighten it together with the oil baffle.

-- Install the oil pan. Refer to OIL PAN .

-- Fill the engine oil and check the oil level.
