Oil Pan: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation Description and Operation .

-- If equipped, loosen the fasteners -arrows- and remove the oil pan noise insulation -1-.

Fig 1: Identifying Oil Pan Noise Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drain engine oil. Refer to Maintenance, Diagnosis .

NOTE:

Observe disposal regulations!

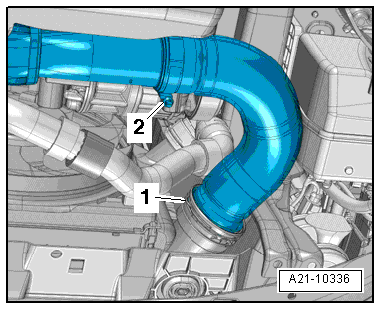

-- Lift the clamp -1-, loosen the clamp -2- and remove the cold side connecting hose.

Fig 2: Identifying Air Guide Hose And Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

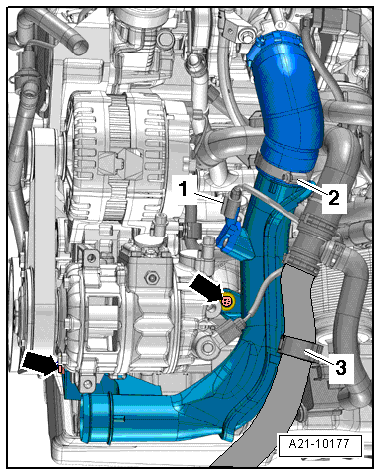

-- Remove the bolts -arrows- from the charge air pipe and then move the charge air pipe to the side.

Fig 3: Identifying Charge Air Pipe Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

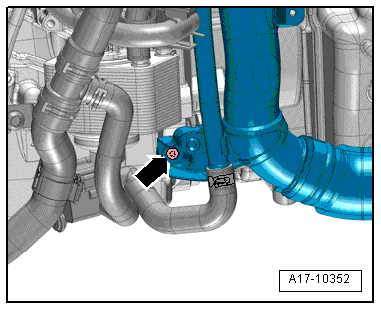

-- Remove the bolt -arrow- and push Engine Coolant Circulation Pump 2 -V178- to the side.

Fig 4: Identifying Engine Coolant Circulation Pump Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- from the hot side charge air pipe.

Fig 5: Identifying Charge Air Pipe On Hot Side Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the Oil Level Thermal Sensor -G266-.

-- Remove the bolts connecting the oil pan to the transmission.

-- Remove the bolts from the oil pan diagonally.

-- Tap the oil pan lightly using a rubber hammer to loosen it, if necessary.

-- Remove any sealant residue on the crankshaft housing with a flat blade scraper.

WARNING:

Wear protective eyewear.

-- Remove the sealant residue on the oil pan using a rotating brush such as a drill with a plastic brush attachment.

Fig 6: Identifying Removal Of Residual Sealant On Oil Pan E.G. With Rotating Plastic Brush

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the sealing surfaces. They must be free of oil and grease.
