Oil Circuit Overview

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

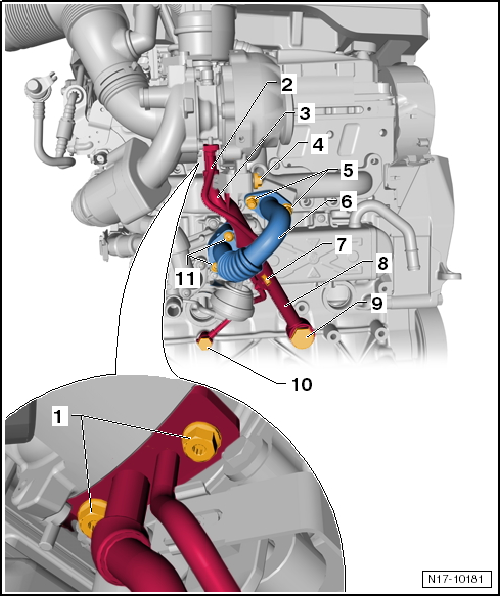

Fig 1: Identifying Oil Circuit Components Overview
GWWN17-10181Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 20 Nm
  2. Oil Supply Line
  3. Oil Return Line
    • Replace gasket
  4. Bolt
    • 25 Nm
  5. Bolt
    • 20 Nm
    • Replace
  6. Connecting Pipe to EGR Cooler
    • Replace gaskets
  7. Bolt
    • 10 Nm
  8. Support
    • For the turbocharger
  9. Banjo Bolt
    • Replace
    • 60 Nm
  10. Banjo Bolt
    • Replace
    • Replace seals
    • 30 Nm
  11. Bolt
    • 10 Nm
