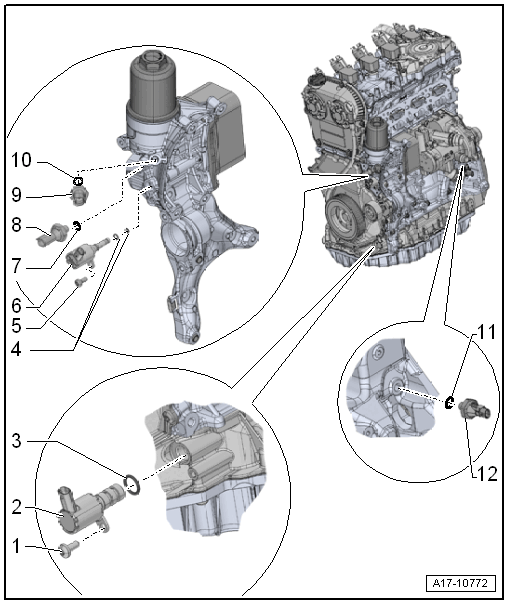

OVERVIEW - OIL PRESSURE SWITCHES -F1- AND -F378-, Oil Pressure Regulation Valve -N428-
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, and 2014 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 4 Nm + 90°
- Replace after removing
- Oil Pressure Regulation Valve -N428-
- Removing and installing, refer to Oil Pressure Regulation Valve -N428- .
- O-Ring
- Replace after removing
- Coat with engine oil
- O-Rings
- Not installed
- Bolt
- Not installed
- Piston Cooling Nozzle Control Valve -N522-
- Not installed
- Seal
- Replace the seal with the oil pressure switch.
- The seal cannot be replaced separately.
- Oil Pressure Switch -F1-
- 20 Nm
- Blue or gray insulation
- Checking Vehicle Diagnosis Tester
- Removing and installing, refer to Oil Pressure Switch -F1- .
- Reduced Oil Pressure Switch -F378-
- 20 Nm
- Brown insulation
- Checking Vehicle Diagnosis Tester
- Removing and installing, refer to Reduced Oil Pressure Switch -F378- .
- Seal
- Replace the seal with the oil pressure switch.
- The seal cannot be replaced separately.
- Seal
- Not installed
- Oil Pressure Switch, Level 3 -F447-
- Not installed
