Oil Pressure, Checking

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Oil Pressure Gauge V.A.G 1342

Procedure

Oil level OK
Engine oil temperature approximately 80° C (176° F)

-- Disconnect the connector -2- from the Reduced Oil Pressure Switch -F378- (brown).

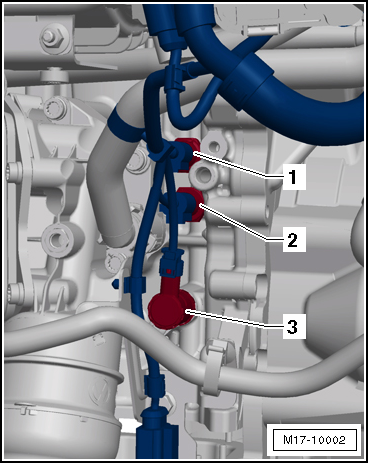

Fig 1: Locating Oil Pressure Switch and Oil Pressure Regulation Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Reduced Oil Pressure Switch -F378-.

-- Connect the Oil Pressure Gauge V.A.G 1342 in the opening for the Oil Pressure Switch.

-- Install the Reduced Oil Pressure Switch -F378- into the oil pressure gauge.

-- Start the engine.

Oil pressure when the vehicle is idling: 1.2 to 2.1 bar (17.4 to 30.4 psi)
Oil pressure at 2000 RPM: 1.6 to 2.1 bar (23 to 30.4 psi).
Oil pressure at 3700 RPM: 3.0 to 4.0 bar (43 to 58 psi).

NOTE:

The oil pressure may be 3.0 to 4.0 bar (43 to 58 psi) at 2, 000 RPM during the first 1, 000 km.

If the specification is not obtained:

-- Check the oil intake pipe screen for dirt -item -.

-- Install the Reduced Oil Pressure Switch -F378-.
