Fastener Tightening Specifications
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
| Components | Fastener Size | Nm |
|---|---|---|
| Oil cap | - | 25 |
| Oil dipstick tube bolt | - | 8 |
| Oil drain plug | - | 5 |
| Oil drain plug, oil pan lower section | - | 30 |

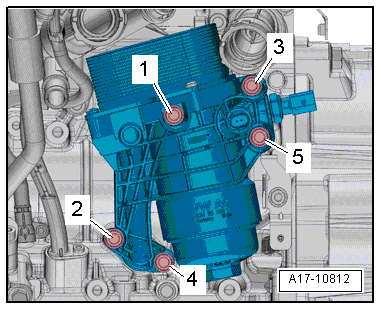

| Oil filter housing - tightening specification and sequence | - | Refer to Figure |
| Oil intake pipe bolt | - | 8 + 90° |
| Oil level thermal sensor 1 | - | 8 |
| Oil level thermostat | - | 9 |
| Oil pan lower section, tightening specification and sequence | - | Refer to Figure |
| Oil pan upper section, tightening specifications and sequence | - | Refer to Figure |
| Oil pan - tightening specifications and sequence with one piece oil pan | - | Refer to Figure |
| Oil pressure regulation valve bolt | - | 8 |
| Oil pressure switch | - | 20 |
| Oil pump bolt | ||
| Hex head bolt | - | 10 + 180° |
| Torx® head bolt | - | 12 + 180° |
| Reduced oil pressure switch | - | 20 |
|
||
